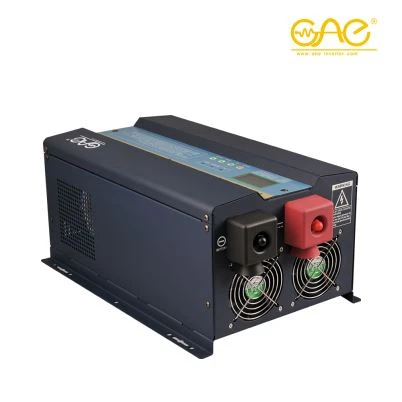

Tsawg zaus 1500W Offgrid Inverter

Lub hnub ci inverter yog ib qho tseem ceeb ntawm lub hnub ci hluav taws xob vim nws hloov hluav taws xob ncaj qha (DC) uas tsim los ntawm lub hnub ci vaj huam sib luag rau hauv alternating tam sim no (AC), uas tsim nyog rau kev siv hluav taws xob ntau hauv tsev, chaw ua haujlwm thiab cov khoom siv tsheb. Hauv tsab xov xwm no, peb yuav tham txog txoj hauv kev ua haujlwm thiab kev siv ntawm 1500W hnub ci inverter.

Txoj Cai Ua Haujlwm:

Lub hnub ci inverter muaj ntau yam, suav nrog DC input, MPPT maub los, inverter module, thiab AC tso zis. Cov tswv yim DC txuas nrog lub hnub ci vaj huam sib luag, uas tsim ib qho nyiaj ntawm DC voltage thiab tam sim no. Lub MPPT maub los yog lub luag haujlwm rau kev ua kom lub zog loj tshaj plaws ntawm cov hnub ci vaj huam sib luag los ntawm kev kho DC input voltage thiab tam sim no raws li cov yam ntxwv ntawm lub hnub ci vaj huam sib luag. Lub inverter module hloov DC voltage rau hauv AC voltage los ntawm kev siv cov khoom siv hluav taws xob xws li MOSFETs, capacitors, thiab transformers. Thaum kawg, AC tso zis yog siv los txhawb ntau yam khoom siv hauv lub tsev lossis lub tsheb.

Kev hloov pauv ntawm DC rau AC muaj ob peb kauj ruam. Ua ntej, qhov hluav taws xob DC nkag los yog lim kom tshem tawm cov tsis xav tau waveforms lossis cuam tshuam. Tom qab ntawd, DC voltage hloov mus rau hauv AC waveform siv pulse-width modulation (PWM) lossis sine yoj inversion cov tswv yim. Thaum kawg, AC waveform yog tswj xyuas kom muaj zog thiab zaus.

Rated zog: 1.5KW

Lub zog hluav taws xob: 4.5KW

Roj teeb hluav taws xob: 12V / 24V / 48V

Ntim qhov loj (D * W * H): 530 * 335 * 260 mm

GW: 16 KGS

Daim ntawv thov:

Hnub ci inverters siv ntau yam kev siv, suav nrog thaj chaw, chaw lag luam, thiab chaw tsim khoom. Lub hnub ci vaj tsev nyob feem ntau muaj peev xwm ntawm 5kW txog 10kW, uas yog txaus rau lub hwj chim ntawm lub tsev ib txwm xav tau hluav taws xob. Kev lag luam hnub ci tshuab tuaj yeem loj dua, xws li 50kW txog 1MW, nyob ntawm qhov loj ntawm lub tsev thiab kev siv lub zog. Kev lag luam hnub ci tshuab tuaj yeem loj dua, muaj peev xwm ntawm ob peb megawatts.

Sib nrug los ntawm kev siv nyob ruaj ruaj, lub hnub ci inverters kuj tseem siv rau hauv lub tsheb, xws li RVs, nkoj, thiab tsheb. Cov tshuab no feem ntau muaj lub peev xwm me dua thiab tsim los rau cov khoom siv tshwj xeeb xws li lub teeb, twj, thiab cov khoom siv.
