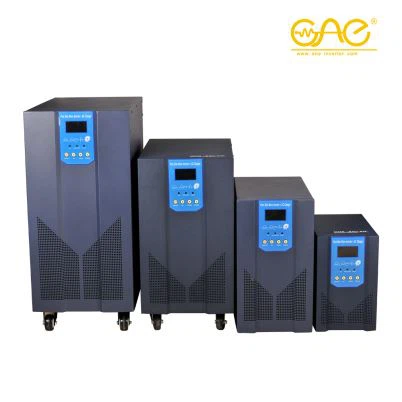

ntshiab sine yoj inverter 20kw

Hom: DC / AC Inverters

Loj: 760X430X800mm

Specification: 92kg

Thauj Pob: Lub thawv muaj zog

Lub built-in hnub ci maub los paub qhov siab tshaj plaws lub zog taw tes nrhiav, uas tuaj yeem ua kom lub hnub ci vaj huam sib luag tso zis ntau tshaj plaws.

Inverter muaj pes tsawg leeg:

Cov ntshiab sine yoj inverter yog roughly sib sau ua ke los ntawm kev tiv thaiv rov qab kev twb kev txuas tiv thaiv, boost, rectification thiab filtering, SPWM maub los, thiab H choj.

Lub square wave inverter tsis muaj SPWM maub los.

Kev tiv thaiv kev tiv thaiv kev tiv thaiv rov qab: kev tiv thaiv Circuit Court tsis ua haujlwm tom qab cov tswv yim zoo thiab qhov tsis zoo yog txuas rov qab

Boost: Boost lub input low-voltage DC voltage (feem ntau yog 12V / 24V) mus rau ntau tshaj 300 volts, vim hais tias lub input Circuit Court kuj loj, feem ntau yog ib tug laub-rub architecture; #inverter 20kw ib theem cov zis boost yuav tsum ntau dua lub ncov sine yoj voltage, piv txwv li, cov zis sine yoj voltage yog 220V, boost output yuav tsum ntau dua.

Rectification thiab filtering: rectify thiab lim cov boosted voltage mus rau tus ncaj ncaj tam sim no

SPWM maub los: tso zis 4 raws ntawm sine mem tes dav modulation teeb liab nrog rau hauv av, thiab ces muab los ntawm IR2110 nrog bootstrap Circuit Court rau H choj tsav 4 MOS

H choj: nrog LC lim ntaus ntawv los hloov 310V DC rau hauv myopic sine yoj
